[TUTORIAL] How to create a tileset with Jo Map Editor 6.0

[mindslight]

1) Update Jo Map Editor : http://jo-engine.org/mapeditor/

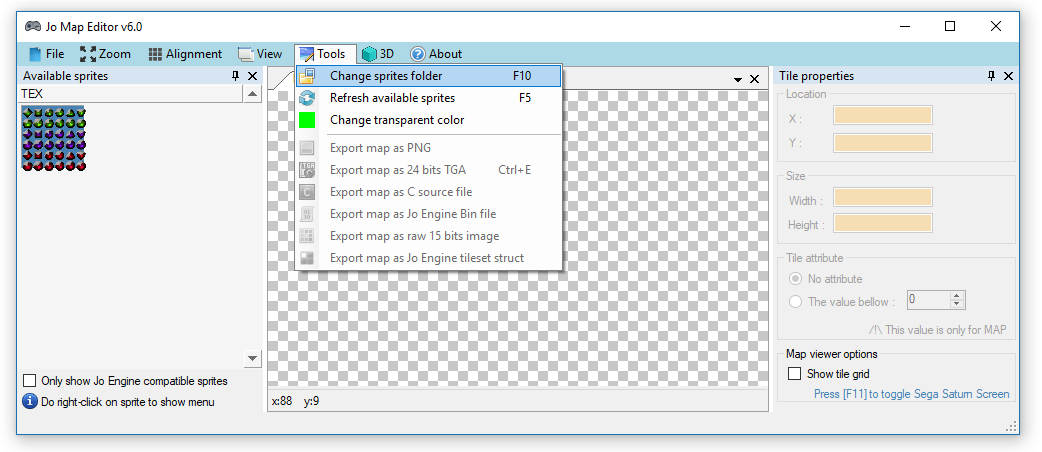

2) Launch Jo Map Editor and select the folder where your sprites are located:



3) Drag & Drop an image on the editor

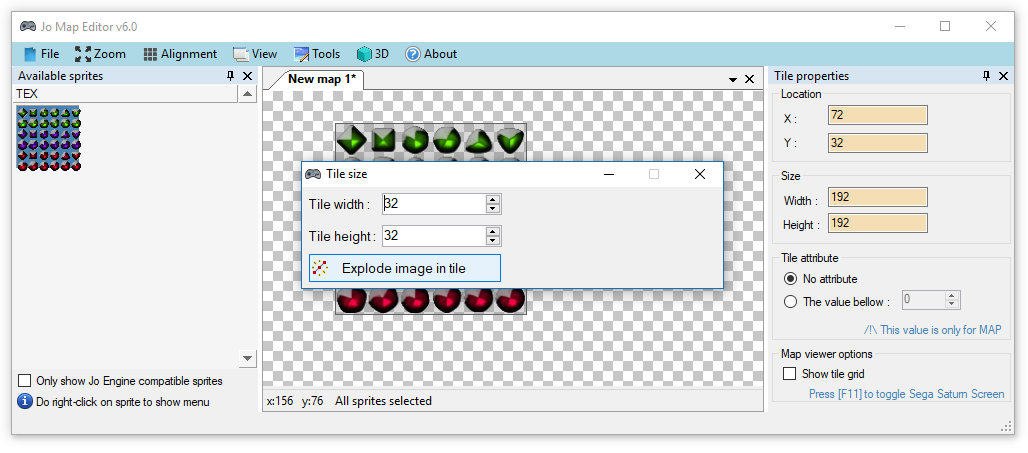

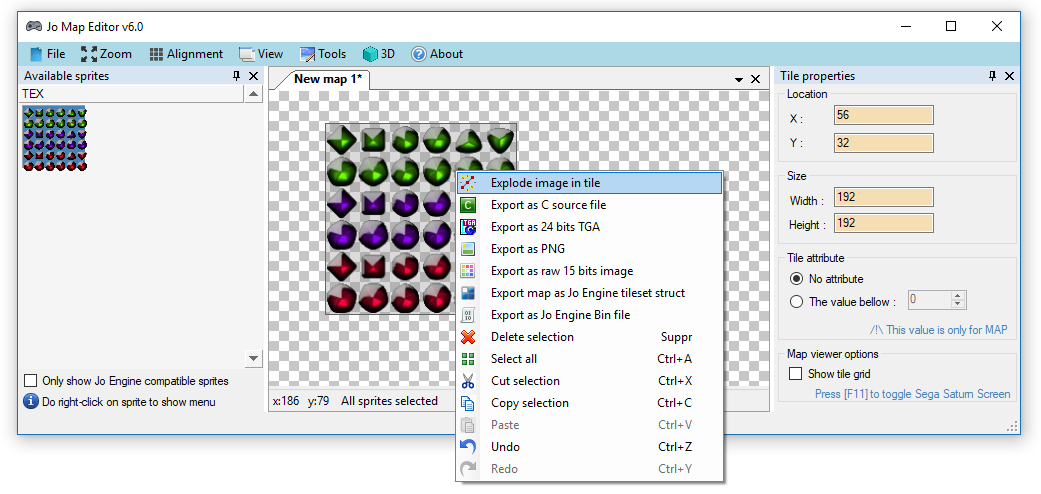

4) Explode your image in tiles



Warning: width must be a multiple of 8 in the Sega Saturn

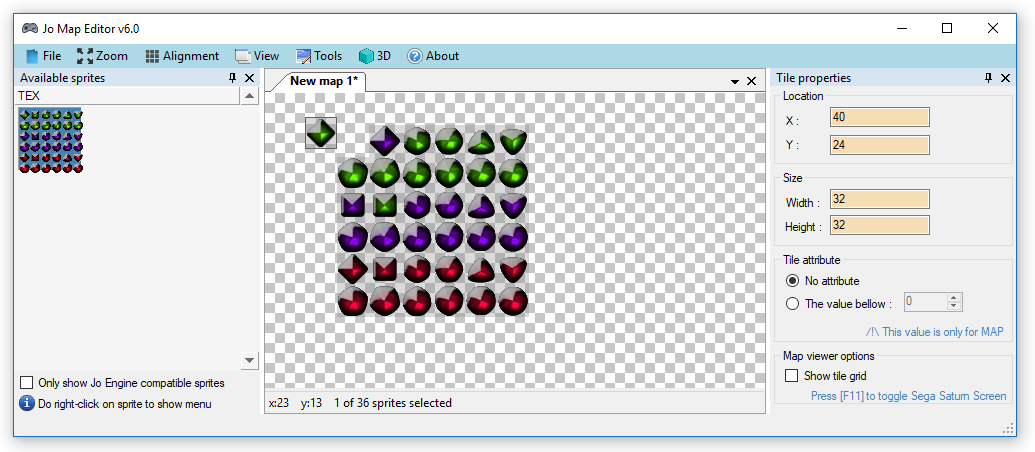

5) Now you can move each tile and also drag & drop another image or re-explode one tile

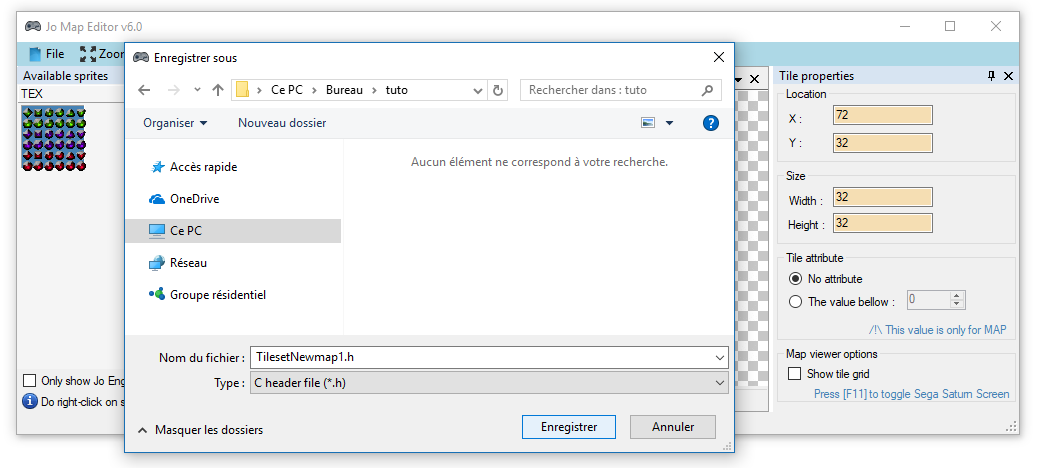

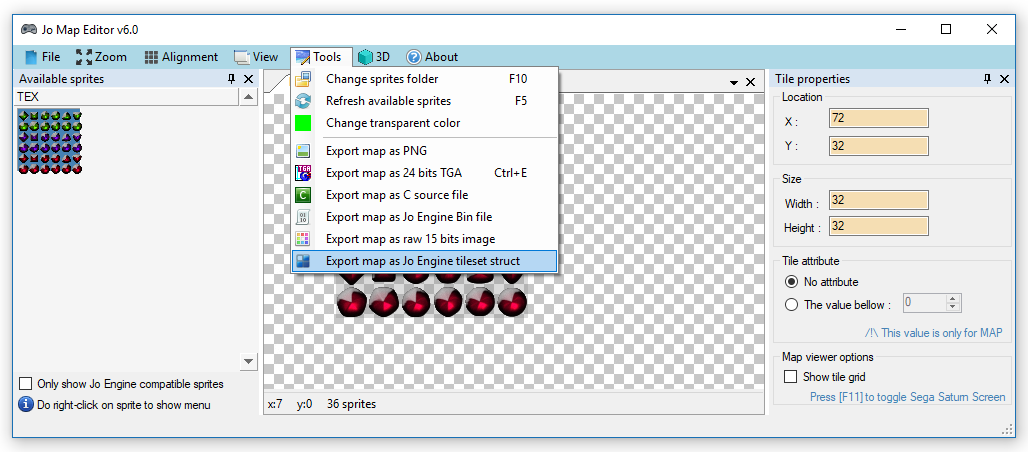

6) Export the tileset for the Jo Engine





This will generate a file with the coordinate of each tile (to include in your project):

Code: [Select]

/*
   Tileset generated by Jo Map Editor v6.0
*/

#ifndef __TILESETNEWMAP1_H__
# define __TILESETNEWMAP1_H__

/* 36 tiles */
static const jo_tile    TilesetNewmap1[] =
{
	{0, 0, 32, 32},
	{0, 32, 32, 32},
	{0, 64, 32, 32},
	{0, 96, 32, 32},
	{0, 128, 32, 32},
	{0, 160, 32, 32},
...

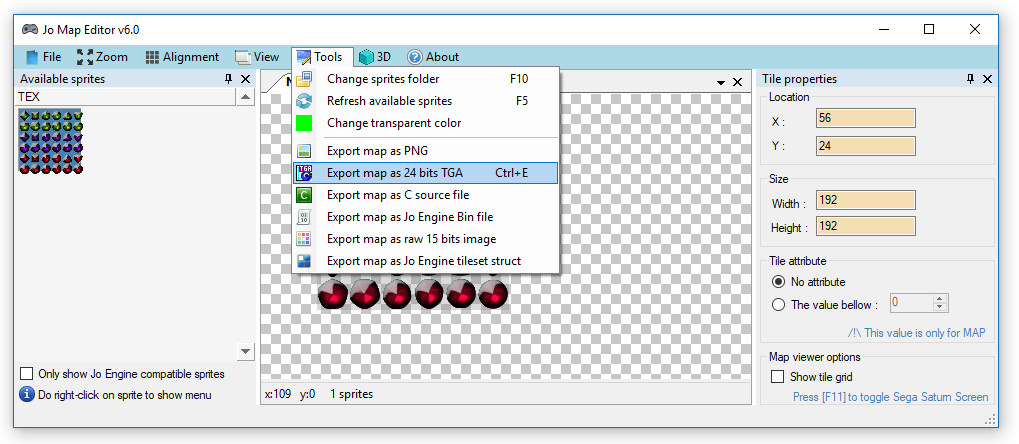

7) Export the whole image in TGA, BIN format or C source file (in our example, we use TGA)



This image must be saved in the "cd" directory of your project in order to be load later



That's it ! Now you can follow the code inside the tileset demo ("demo - tileset" folder) in the Jo Engine source code

Hope the will help you
